Switch Rack Ears for 10-Inch Racks (Pair)

Rack-mount the desktop switch you already own. These ears hold your switch on two support ledges and bolt to a 10-inch rack. The switch front sits in the rack opening with every port and light in view, with no drilling and no adhesive.

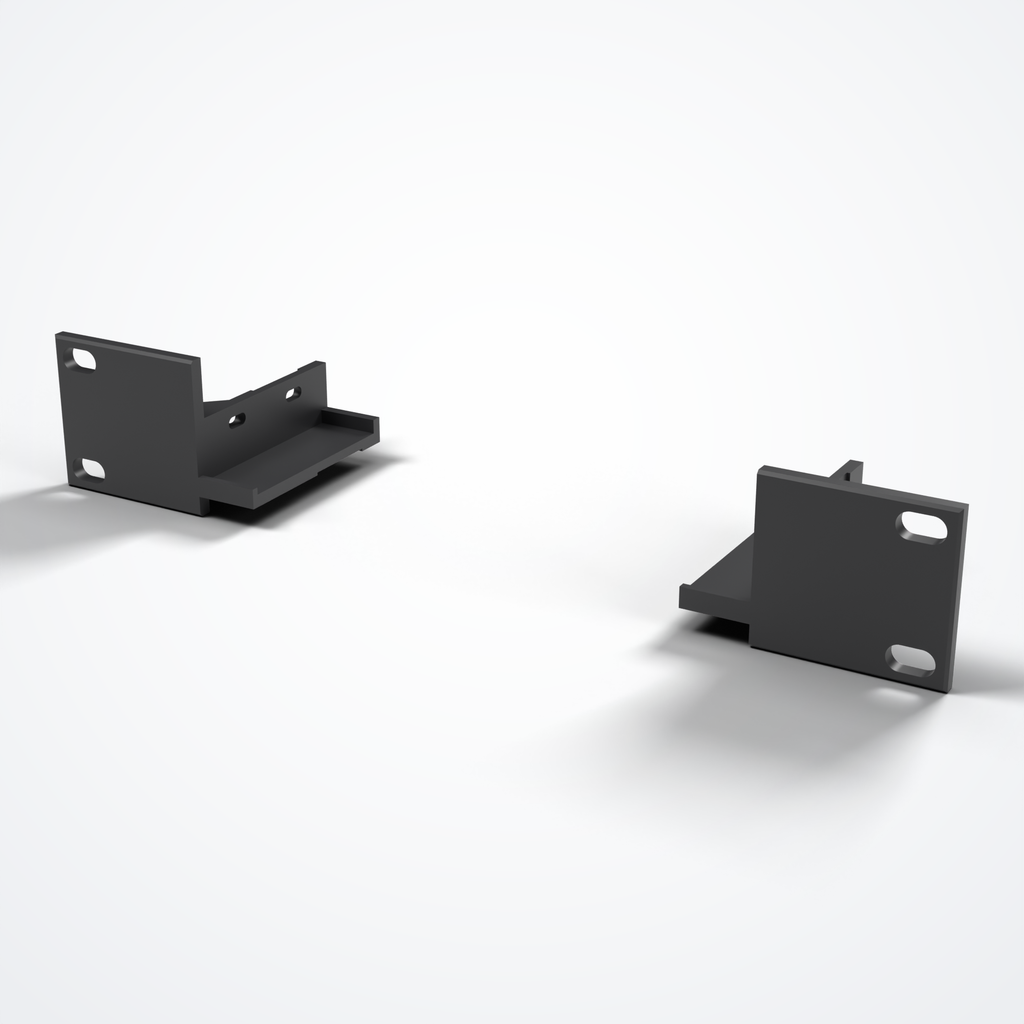

• Cradle design: each ear has an 18 mm support ledge under the switch, a front stop lip and a side wall. It doesn't depend on the switch having screw holes.
• Secure it your way: wrap a 20 mm hook-and-loop strap around the switch and ledges (a groove keeps it in place; strap not included), or use M3 screws through the slotted side holes if your switch has side screw points.

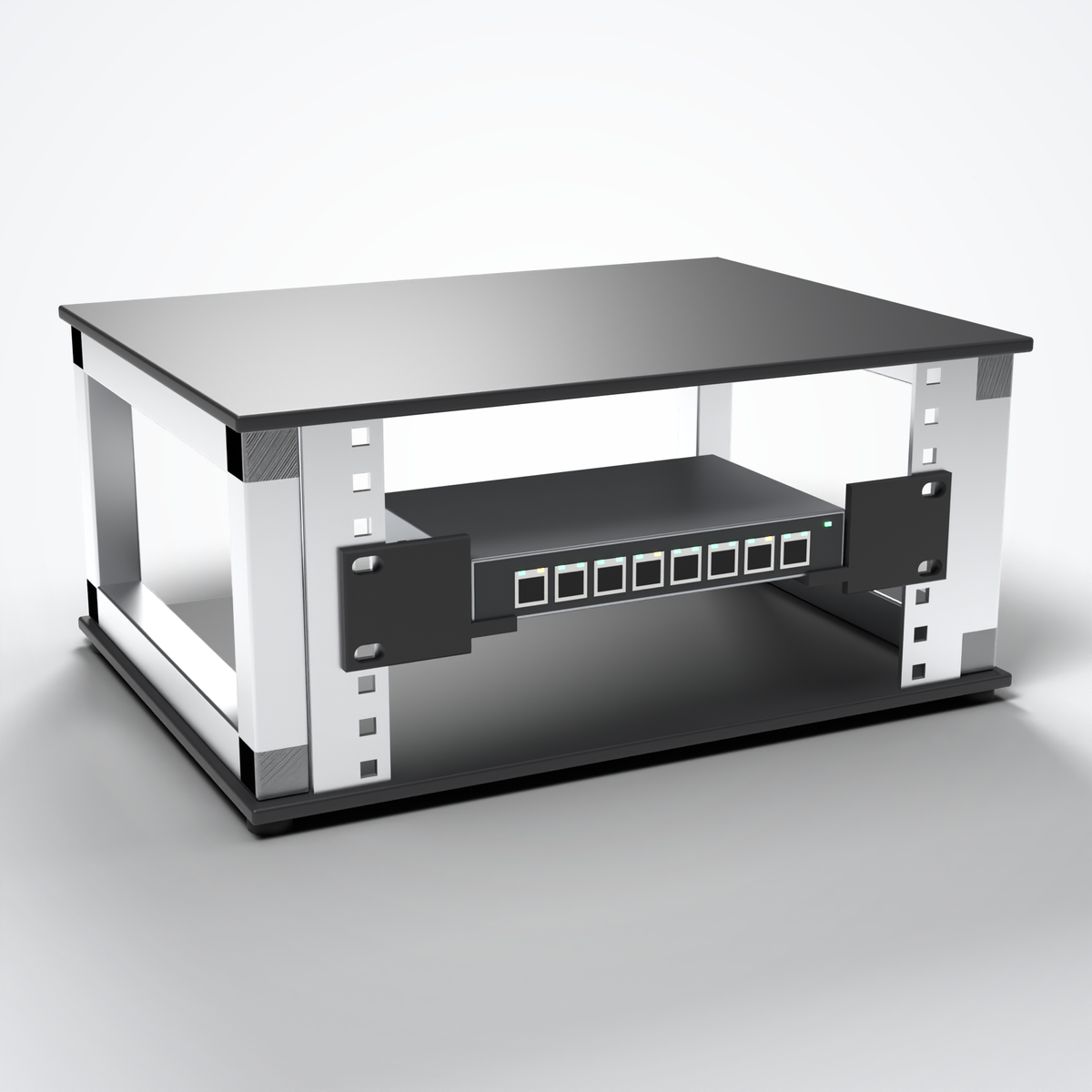

• Fits standard 10-inch racks: Standard 10-inch rack size: 254 mm (10 in) wide, 1U (44.45 mm) tall. Slotted rack holes (±2.5 mm) fit 236.5 mm (9.31 in) rail spacing and M6, M5 or 10-32 rack screws. Use the screws that came with your rack (not included).

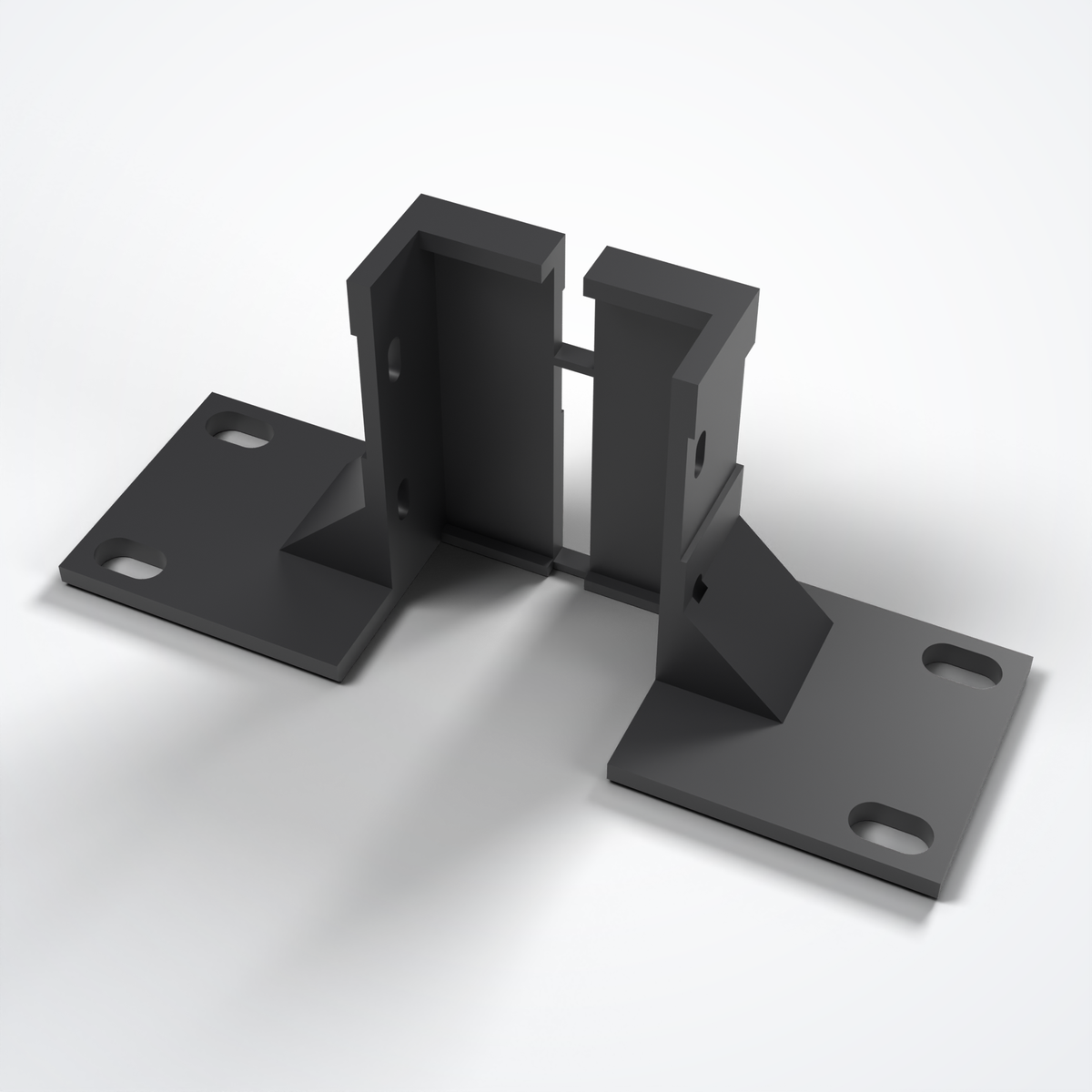

• One print, two ears: printed as one piece joined by a small snap-off link, so you snap them apart before fitting.
• PETG: stiff, and holds up near warm network gear.

Pick your size

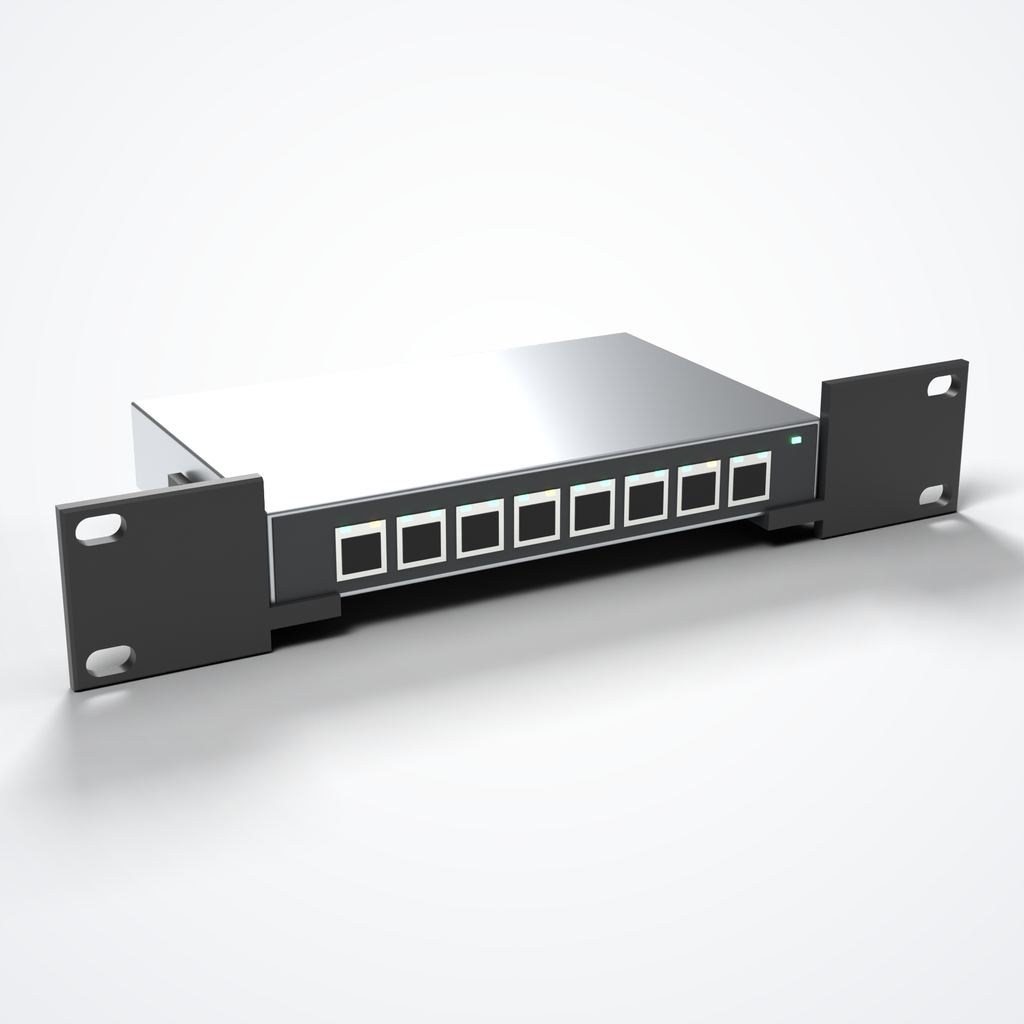

• 8-port, 158 mm wide: fits TP-Link TL-SG108 / TL-SG108E and other 158 × 101 × 25 mm switches.

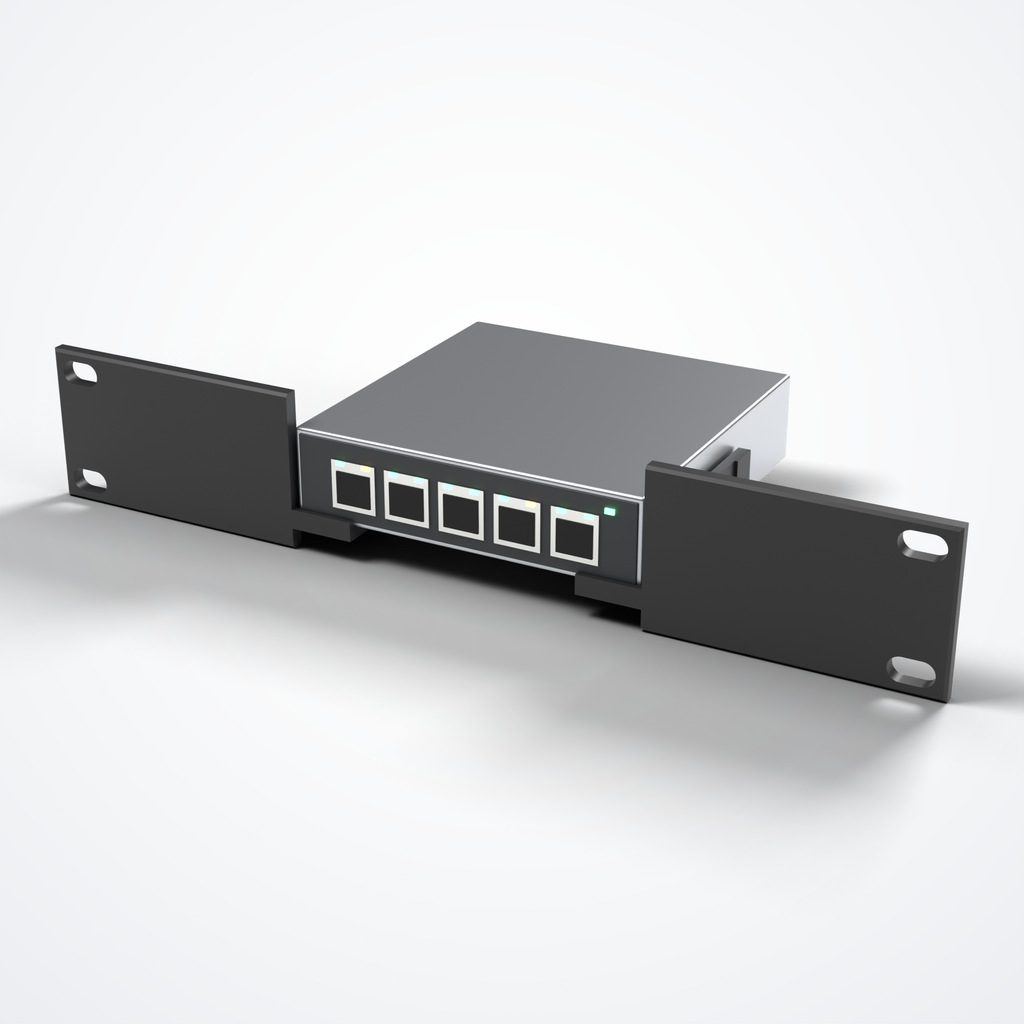

• 5-port, 100 mm wide: fits TP-Link TL-SG105 / TL-SG105E (99.8 × 98 × 25 mm).

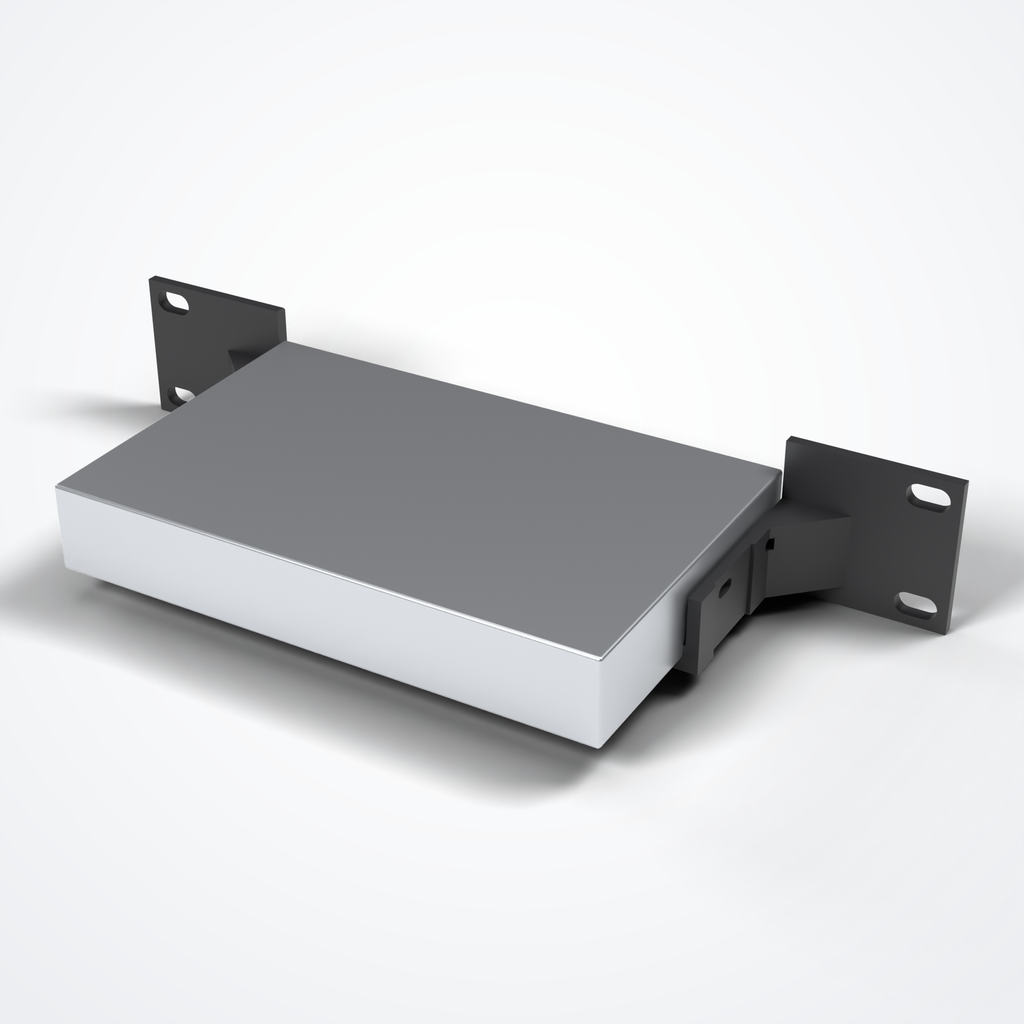

Ears are 60 mm deep, so the back of the switch extends past them. Measure your switch's width to confirm it matches.

Fits or we reprint free

If it doesn't fit the version you ordered, message us within 30 days with a photo and we'll reprint it free, or refund you if you'd rather. No need to send anything back.

Made to order in the USA

Printed in tough matte-black PETG in the USA after you order. Ships in 3–5 business days, plus transit time.

In the box: 1 pair of ears (left and right, joined by a snap-off link). No hardware included.

Brand and model names are used only to describe compatibility. This is an independent Neutrino Networks design, not made or endorsed by Lenovo, Raspberry Pi or TP-Link.
