Neutrino 10-Inch 1U Rack Mount with 2 Keystones, compatible with UniFi Cloud Gateway Ultra, Cloud Gateway Max, and Gateway Max

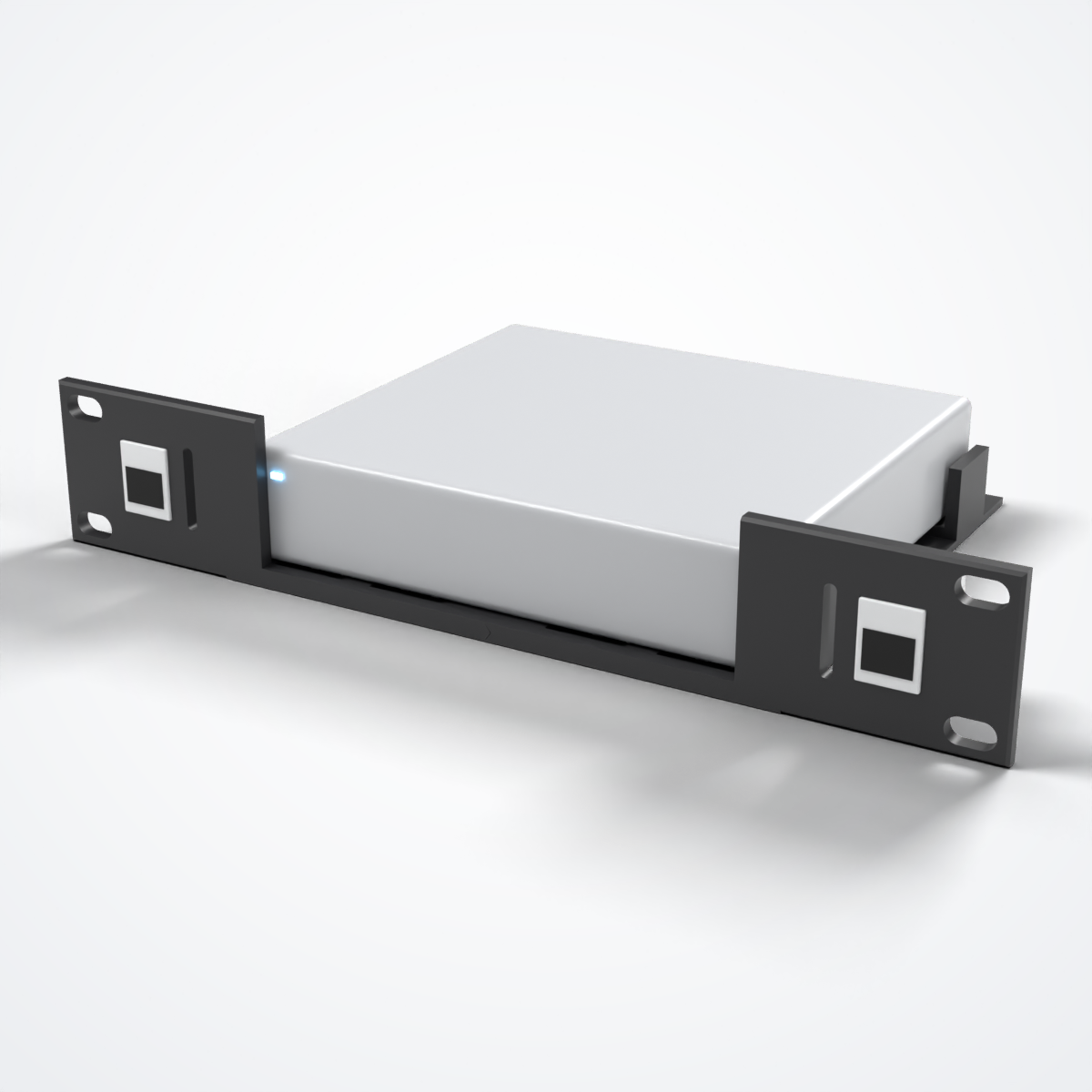

Give your gateway a proper home in your 10-inch rack. This 1U mount is made for UniFi Cloud Gateway Ultra, Cloud Gateway Max and Gateway Max, designed around their published dimensions (all three share the same body). The gateway sits snug on raised rails behind the faceplate, with its display or status light facing out the front.

• Compatible with UniFi Cloud Gateway Ultra (UCG-Ultra), Cloud Gateway Max (UCG-Max) and Gateway Max (UXG-Max): 141.8 × 127.6 × 30 mm. Designed with 1.25 mm clearance per side, plus front stop lips sized for the gateway's rounded corners, so it can't slide out of the front.
• 2 keystone pass-through ports: these gateways have their network ports on the back. Snap in two standard keystone couplers or jacks (not included) and patch your WAN and a LAN port through to the front of the rack.
• Open where it matters: the rear is open for cables, power and the reset button. The top is open, and the sides are open along the lower edge where the UCG-Max has its vents and SSD door. We recommend leaving the gateway's stick-on feet off.
• Two halves, printed flat for strength: the halves slide together on a V tongue-and-groove, and your rack screws hold them in line. Add one optional M3 × 20 mm bolt and nut through the rear bosses (not included) to lock them into one rigid piece. Slots fit an optional 20 mm hook-and-loop strap (not included).
• Fits standard 10-inch racks: 254 mm (10 in) wide, 1U (44.45 mm) tall. Slotted rack holes (±2.5 mm) fit 236.5 mm (9.31 in) rail spacing and M6, M5 or 10-32 rack screws. Use the screws that came with your rack (not included). Mount depth 148 mm, plus room for your cables.
• PETG, not PLA: PETG handles warm equipment better than the PLA many printed mounts use.

Fits or we reprint free

If it doesn't fit the model you ordered it for, message us within 30 days with a photo and we'll reprint it free, or refund you if you'd rather. No need to send anything back.

Printed to order in the USA

Printed to order in the USA by our print partner, in tough matte-black PETG. Ships in 3–5 business days, plus transit time.

In the box: left and right mount halves. Not included: the gateway, keystone jacks or couplers, patch cables, rack screws, bolt, strap or any other hardware.

Shipping: $4.99, or free on orders of $69.99 or more. Contiguous US only (not Alaska, Hawaii or US territories).

Model names are used only to describe fit. This is an independent Neutrino Networks design. Not affiliated with or endorsed by Ubiquiti Inc. UniFi is a trademark of Ubiquiti Inc. Not made or endorsed by Ubiquiti.
